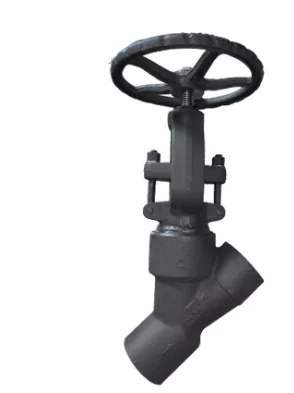

Y Type Globe Valve
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs,
- Pick up at a collection point is possible
- 30 days to change your mind and free returns
- Day and night customer service
Description
Y Type Globe Valve
Body: A105, F22, F304L, F316L
Disc: SS420, SS304, SS304L, SS316L
Stem: F6a, F304, F304L, F316L
Gasket: Stainless Steel+Graphite, Stainless Steel+PTFE
Bonnet: A105, SS304, SS304L, SS316L
Stem Packing: Graphite, PTFE
Nominal Diameter: DN15 to DN50
Nominal Pressure: Class800 to Class2500
Operation: Handwheel
Design and Manufacturing: ASME B16.34, API602
Face to Face: ASME B16.34
Flanged Ends: ASME B16.5, ASME B16.47, EN1092
Buttweld Ends: ASME B16.25, ASME B31.8, EN12627
Socketweld Ends: ASME B16.11
Threaded Ends: ASME B1.20.1
End Connection: NPT, SW,BW, RF, RTJ
Inspection and Testing: API598, DIN3230, EN12266
Dimensions Unit: mm
Class800
DN | L | H | W | Weight(kg) |
15 | 98 | 202 | 100 | 4.0 |
20 | 98 | 202 | 100 | 3.6 |
25 | 120 | 237 | 125 | 6.6 |
32 | 140 | 265 | 160 | 8.5 |
40 | 140 | 280 | 160 | 11.3 |
50 | 170 | 327 | 180 | 12.5 |
Additional information
Body Material | A182-F22, ASTM A105N |
---|---|
Class | 1500 |
Size | 1 1/2", 1", 1/2", 2", 3/4" |
