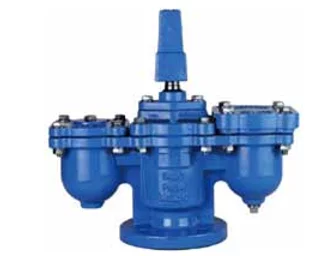

Double Orifice Air Valve

€56.00 – €779.00
In Stock
Custom Enquiry
Add to wishlist
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: N/A
Categories: ,

Description

Double Orifice Air Valve

Body: Ductile Iron, Cast Iron

Ball: SS304

Bonnet: Ductile Iron, Cast Iron

Gland: Ductile Iron, Cast Iron

Cap Top: Ductile Iron, Cast Iron

Washer: SS304, Carbon Steel

Nut: SS304, Carbon Steel

Bolt: SS304, Carbon Steel

Gasket: NBR

Stem: SS420

Stem Nut: SS420

Nominal Diameter: DN80 to DN200

Nominal Pressure: Class150 to Class300, PN16 to PN40

Design and Manufacture Standard: DIN3352

Flanged End Dimension: DIN2501

Inspection and Test: BS6755

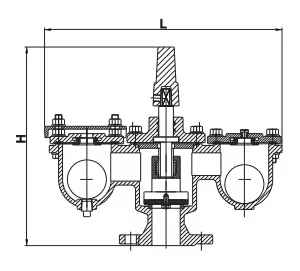

Dimensions                                                                                                             Unit:mm

DN L H
50 418 351
80 454 375
100 492 419
150 595 440
200 698 475

Additional information

Body Material

Cast iron, Ductile Iron
Class

150/PN16, PN10
Size

1 1/2", 2", 3", 4", 6", 8"
Connection Type

Flanged, Screwed
