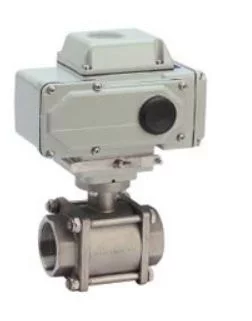

Electric Actuated High Pressure Direct Mounting Ball Valves
Body: Carbon Steel, CF8M, CF8M
Bonnet: Carbon Steel, CF8M, CF8M
Ball: CF8, CF8M
Seat: PTFE
Packing: PTFE
Nominal Diameter: DN15 to DN250
Actuation Type: Electric Actuated
Input and Output Signal: DC 4-30mA, DC 0-10V, DC 1-5V
Voltage: AC110-240V 380V 50/60Hz, DC 12V, DC 24V
Power Supply: 24V AC, 24V DC, 110V AC, 230V AC
Dimensions
| DN15 | DN20 | DN25 | DN32 | DN40 | DN50 | DN65 | DN80 | DN100 | DN125 | DN150 | DN200 |
| 1/2″ | 3/4″ | 1″ | 1-1/4″ | 1-1/2″ | 2″ | 2-1/2″ | 3″ | 4″ | 5″ | 6″ | 8″ |
| 15 | 20 | 25 | 30 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| 45 | 55 | 65 | 78 | 85 | 100 | 120 | 135 | 155 | 185 | 210 | 265 |
| 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 |
| 95 | 105 | 115 | 135 | 145 | 160 | 180 | 195 | 215 | 245 | 280 | 335 |
| 130 | 140 | 150 | 165 | 180 | 200 | 222 | 250 | 280 | 320 | 360 | 400 |
| 4-Φ14 | 4-Φ14 | 4-Φ14 | 4-Φ18 | 4-Φ18 | 4-Φ18 | 4-Φ18 | 8-Φ18 | 8-Φ18 | 8-Φ18 | 8-Φ28 | 4-Φ23 |
| 5.4 | 5.7 | 6.1 | 7.4 | 8.7 | 11.6 | 15.6 | 17.1 | 24.98 | 33.5 | 43.5 |
