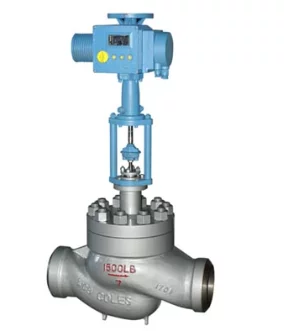

Feed Water Control Valve

0.00

0.00

This product is currently out of stock and unavailable.

Custom Enquiry

Description

Feed Water Control Valve

Body : A105

Bonnet : A105

Stem : SS304 , 20Cr13

Disc : SS304 , 20Cr13

Seat : SS304 , 20Cr13

Sleeve : SS304

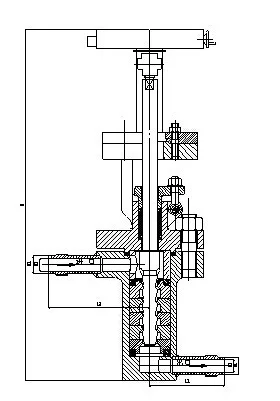

Dimension:

PN(Mpa) DN(mm) L H L1 L2 D1 D2 Electric Actuator
Electric
10 20 460 870 118 160 28 20 10M
10 32 530 950 136 163 42 32 10M16ZKZ-310B(C)
50 530 970 136 163 62 50 10M16ZKZ-310B(C)
PN

Mpa

DN

(mm)

TAM°C CV Max Pressure Difference Mpa Route

(mm)

Max Flow

t/h

1 2 3 4 5
10 20 water 1.6 1 0.6 0.4 0.1 5 10 4.3
20 32     ≤250 6.3 4 1.6 5 18 17
50 14 10 6.3 5 18 37.8
