Pneumatic Actuated Gate Valve

0.00

0.00

This product is currently out of stock and unavailable.

Custom Enquiry

Description

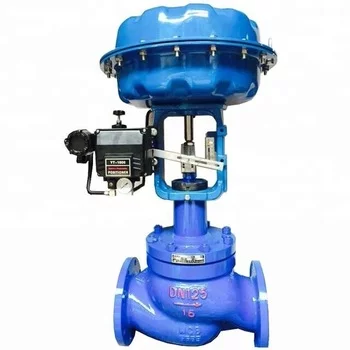

Pneumatic Actuated Gate Valve

Size: DN40 to  DN700

Pressure: PN10 to PN150, Class150 to Class900

Body Material: Cast Iron, Ductile Iron,  Carbon Steel, Stainless Steel

Bonnet: Carbon Steel, Ductile Iron, SS304, SS316, CF3, CF3M

Plug: A105,SS304, SS316, SS304L, SS316L

Seat, Seat Ring: PTFE

Packing: Graphite

Flanged Ends to ASME B16.5

Socket Weld Ends to ASME B16.11

Butt Weld Ends to ASME B16.25

Screwed Ends to ANSI , ASME B1.20.1

End Connections: Flanged, Socketweld, Buttweld

Operations: Handwheel, Gear Operated, Electric Actuated, Pneumatic Actuated

Dimensions                                                                                                     Unit: mm

Class150

DN L D D1 D2 b H z-фd H1 D0
50 250 160 125 100 16 950 4-ф18 570 ­180
65 270 180 145 120 18 1050 4-ф18 596 180
80 280 195 160 135 20 1080 8-ф18 635 200
100 300 215 180 155 20 1145 8-ф18 645 250
125 325 245 210 185 22   1210 8-ф18 685 250
150 350 280 240 210 24 1300 8-ф23 720 320
200 400 335 295 265 26 1660 12-ф23 940 400
250 450 405 355 320 30 1790 12-ф25 1020 400
300 500 460 410 375 30 1990 12-ф25 1150 450
350 550 520 470 435 34 2090 16-ф25 1170 450
400 600 580 525 485 36 2290 16-ф30 1325 500
450 650 640 585 545 40 2485 20-ф30 1465 500
500 700 705 650 608 44 2640 20-ф34 1590 550
600 800 840 770 718 48 2940 20-ф41 1720 550
700 900 910 840 788 50 3450 24-ф41 1960 600
