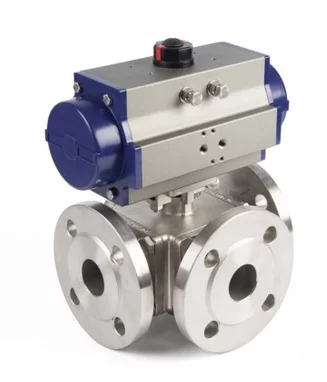

Pneumatic Three Way Flanged Ball Valve
| Product Name | Pneumatic Three Way Flanged Ball Valve |
| 1. Material | SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc. |
| 2. Size | 1/2~10 inch (DN15~DN250) |
| 3. Connection ends | Flange |
| 4. Port | Reduce Port |
| 5. Working Pressure | 150LB~300LB |
| 8. Working Temp. | -20~300ºC, or according to customer requirements for different industry. |
| 9. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 10. Operated | Handle, Lockable handle, Pneumatic Actuator, Electric Actuator. |
| 11.Design & manufacture standard | API6D |
| 12. Pressure & Temp. standard | ASME 16.34 |
| 13. Face to face dimension standard | ASME 16.10 |
| 14. Flange standard | ASME16.5/16.34 |
| 15. Inspection & Testing | API598, API6D |
Dimension:
| Size | PN | ΦD | Φd | Φd1 | Φd2 | L | n | Φh | T | f | H | SR | DA | |||
| DN | in | H1 | L1 | H1 | L1 | |||||||||||
| 15 | 1/2 | 10-40 | 15 | 95 | 65 | 45 | 155 | 4 | 14 | 16 | 2 | 64.5 | 181.5 | 207 | 165 | 162 |
| 20 | 3/4 | Â 10-40 | 20 | 105 | 75 | 58 | 165 | 4 | 14 | 18 | 2 | 64.5 | 193 | 237.5 | 181.5 | 207 |
| 25 | 1 | Â 10-40 | 25 | 115 | 85 | 68 | 181 | 4 | 14 | 18 | 2 | 67.5 | 196 | 237.5 | 184.5 | 207 |
| 32 | 1 1/4 | Â 10-40 | 32 | 140 | 100 | 78 | 190 | 4 | 18 | 18 | 2 | 78.5 | 207 | 237.5 | 195.5 | 207 |
| 40 | 1 1/2 | Â 10-40 | 40 | 150 | 110 | 88 | 212 | 4 | 18 | 18 | 3 | 85 | 226.5 | 271.5 | 213.5 | 237.5 |
| 50 | 2 | Â 10-40 | 50 | 165 | 125 | 102 | 232 | 4 | 18 | 20 | 3 | 93 | 264.5 | 328 | 234.5 | 271.5 |
| 65 | 2 1/2 | Â 10-40 | 65 | 185 | 145 | 122 | 290 | 4 | 18 | 22 | 3 | 121 | 304.5 | 366 | 292.5 | 328 |
| 80 | 3 | 10-16 | 80 | 200 | 160 | 138 | 310 | 8 | 18 | 20 | 3 | 153 | 359 | 428 | 336.5 | 366 |
| 100 | 4 | 10-16 | 100 | 220 | 180 | 158 | 352 | 8 | 18 | 22 | 3 | 170.5 | 392.5 | 430 | 376.5 | 428 |
