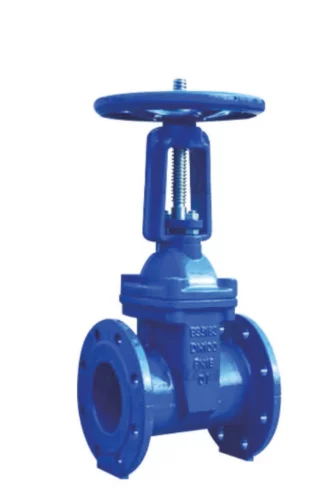

BS Ductile Iron Gate valve

BS Ductile Iron Gate valve

1. Body: Ductile Iron

2. Disc: Ductile Iron+EPDM

3. Stem: Stainless Steel, Inox

4. Bonnet Gasket: EPDM

5. Bonnet: Ductile Iron

6. Sealing Ring: EPDM

7. O Ring: EPDM

8. Stem Nut: Brass, Bronze

9. Holding Ring: Brass

10. Handwheel: Ductile Iron

Nominal Diameter: DN50 to DN600

Nominal Pressure: PN16 to PN40

Design and Manufacture: BS5163

Face to Face Dimension: BS5163

Flange End Dimension: EN1092

Dimensions                                                                      Unit: mm

PN16
