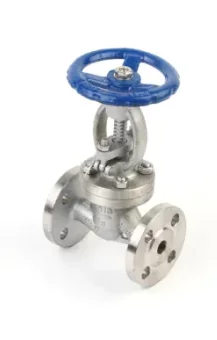

SS316L Gate Valve
Size: 1/2″-30″
Pressure:150LB-1500LB
Body Material: Carbon Steel A216 WCB/A105 (GS-C25/ GP240GH/ 1.0619/ P285NH),, WCC, low Carbon   Steel LCB, LCC, Alloy St A217 WC6, WC9, C5, C12,
Stainless steel A351 CF8, CF8M, CF3, CF3M,       CF8C, Duplex steel A890 GR.4A GR.5A,Etc.
Trim Material: 13%Cr,SS304,SS316, SS304L, SS316L, F11, F22 Etc
Type: Rising Stem, BB, FB, OS&Y
Operation: Hand Wheel. Gear Devices, Electricty, Etc
End: Flanged RF, RTJ, FM, FF , Butt-welding(BW)
Full Port Design, , Outside and Screw(OS&Y), Bolted bonnet, Back Seal Structure
Flexible or Solid wedge, Fully guided, Choice of Solid or Split wedge
Renewable or welded seat
Extended stem design for low temperature
Optional Bypass system
Material Specification:
| ITEM | PARTS | MATERIAL |
| 1 | BODY | ASTM A351-CF8M / 1.4408 |
| 2 | DISC | |
| 3 | BONNET BOLT | AISI 304 |
| 4 | BONNET NUT | |
| 5 | BONNET | ASTM A351-CF8M / 1.4408 |
| 6 | HINGE PIN | AISI 304 |
| 7 | EYE BOLT | |
| 8 | GLAND | ASTM A351-CF8 / 1.4308 |
| 9 | EYE NUT | AISI 304 |
| 10 | HAND WHEEL | FCD |
| 11 | NUT | BRONZE |
| 12 | STEM | AISI 316 |
| 13 | NAME PLATE | AISI 304 |
| 14 | SPRING | BRONZE |
| 15 | YOKE SLEEVE | |
| 16 | SPRING WASHER | AISI 304 |
| 17 | GLAND PACKING | PTFE |
| 18 | PACKING | |
| 19 | SEAL | PTFE/304+GRAPHITE |

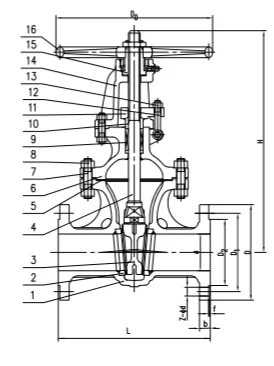

Dimension:
| CLASS | SIZE | d | L | H | Do | D | D1 | D2 | b | f | Z-Φd |
| 150 | 1″ | 25 | 127 | 240 | 140 | 110 | 79.4 | 50.8 | 14.7 | 2 | 4-Φ16 |
| 150 | 2″ | 51 | 178 | 365 | 160 | 150 | 330 | 92.1 | 19.5 | 2 | 4-Φ19 |
| 150 | 2 1/2″ | 64 | 191 | 420 | 160 | 180 | 139.7 | 104.8 | 22.7 | 2 | 4-Φ19 |
| 150 | 3″ | 76 | 203 | 485 | 200 | 190 | 152.4 | 127 | 24.3 | 2 | 4-Φ19 |
| 150 | 4″ | 102 | 229 | 580 | 250 | 230 | 190.5 | 157.2 | 24.3 | 2 | 8-Φ19 |
| 150 | 5″ | 127 | 254 | 710 | 250 | 255 | 215.9 | 185.7 | 24.3 | 2 | 8-Φ22 |
| 150 | 8″ | 203.2 | 292 | 960 | 300 | 354 | 298.5 | 270 | 29 | 2 | 8-Φ22 |
| 150 | 10″ | 254 | 330 | 1055 | 350 | 405 | 362 | 323.8 | 30.6 | 2 | 12-Φ25 |
| 150 | 12″ | 305 | 356 | 1352 | 400 | 485 | 431.8 | 381 | 32.2 | 2 | 12-Φ25 |
| 150 | 14″ | 337 | 381 | 1520 | 400 | 535 | 476.3 | 412.8 | 35.4 | 2 | 12-Φ29 |
| 150 | 16″ | 387 | 406 | 1734 | 500 | 595 | 539.8 | 469.9 | 37 | 2 | 16-Φ29 |
