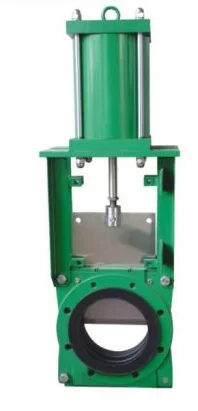

Slurry Knife Gate Valve

690.00965.00
In Stock
Custom Enquiry
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service

Description

Slurry Knife Gate Valve

Body: Ductile Iron, Carbon Steel

Stem: F304, F316

Gate: F304, F316

Stem Packing: PTFE, Graphite

Nominal Diameter: DN50 to DN600

Nominal Pressure: Class150, PN6, PN10, PN16

End Connection: Wafer, Lug

Standard Compliance

MSS SP-81, T 8691

Face to Face Dimension: MSS SP-81

Pre-temperature Rating: ANSI B16.34

Flanged Dimension: ANSI B16.5, DIN2533, HG20592

Inspection and Test: API 598, T 9092

Dimensions                         Unit: mm

DN L O D M-1
50 54 165 125 4-M16
65 54 185 145 4-M16
80 57 200 160 4-M16
100 57.5 220 180 4-M16
125 59 250 210 4-M16
150 65 285 240 4-M20
200 77 340 295 4-M20
250 78 395 350 8-M20
300 83 445 400 8-M20
350 84 505 460 12-M20
400 92 565 515 12-M24
450 103 615 565 16-M24
500 121 670 625 16-M24
600 121 780 725 12-M27

Additional information

Body Material

Ductile Iron

Class

150/PN16

Size

6", 8"
