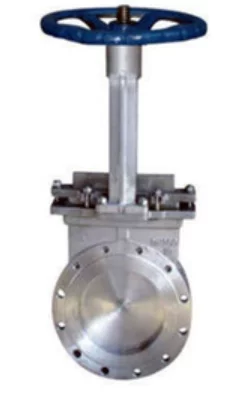

Flanged Knife Gate Valve

Price range: €226.00 through €6,090.00

25 People viewing this product right now!

Free shipping Free shipping on orders over $30,000.

Custom Engineering Support Expert assistance for sizing, selection, and application guidance.

Dedicated Support Professional sales & technical support for all enquiries

Flanged Knife Gate Valve

Body: Carbon Steel, Ductile Iron, SS316

Knife: SS304, SS316

Disc: SS304, SS316L

Wedge: SS304, SS316, SS316L

Packing: PTFE

Seal Ring: Polyurethane, EPDM, NBR, VITON

Yoke: SS304, SS316

Packing Gland: CF8, WCB

Nominal Size: DN50 to DN450

Nominal Pressure: Class150 to Class30, PN10

End Type: Flanged

Operation: Handwheel, Electric Actuated, Pneumatic Actuated

Design and Manufacture Standard: MSS SP-81

Face to Face Dimension: MSS SP-81

Flanged End Dimension: DIN, JIS

Inspection and Test: API 598

Dimensions Unit: mm
