Trunnion Ball Valve Manufacturer in Germany
Valvesonly Europe is a Trunnion Ball Valve Manufacturer in Germany, supplying heavy-duty trunnion mounted ball valves for high-pressure, large-size, and critical pipeline applications across Europe. These valves are designed for reliable shut-off, low operating torque, and long service life in oil and gas, LNG, petrochemical, power, chemical, and industrial process systems.
A trunnion ball valve is selected where pipeline pressure, valve size, and sealing reliability are important. Unlike a floating ball valve, the ball is mechanically supported by trunnions at the top and bottom. This fixed-ball design reduces seat load, lowers operating torque, and allows smooth operation even in high-pressure service.
Function and Working
In a trunnion mounted ball valve, the ball remains fixed in position while spring-loaded seats move toward the ball to create sealing. Line pressure assists the seat sealing action, making the valve suitable for demanding shut-off applications. This design also allows double block and bleed, cavity pressure relief, and safe isolation in critical pipeline systems.
Advantages of Trunnion Ball Valves
- Suitable for high-pressure and large-bore pipelines
- Lower operating torque compared to floating ball valves
- Double block and bleed design available
- Fire-safe and anti-static construction
- Reliable sealing for gas, liquid, and hydrocarbon service
- Suitable for manual, pneumatic, electric, and hydraulic operation
- Long service life with reduced seat wear
Materials
| Component | Material Options | Standards / Grades | Typical Use |
|---|---|---|---|
| Body | WCB, LCB, WC6, CF8M, Duplex, Inconel | ASTM A216, A352, A217, A351 | High-pressure and corrosive service |
| Ball | Stainless Steel, Duplex, Inconel, Monel | ASTM A182, ASTM A351 | Tight shut-off and corrosion resistance |
| Seat | PTFE, RPTFE, PEEK, Devlon, Metal Seated, Stellite | As per service requirement | Chemical, gas, high-pressure, and high-temperature service |
| Stem | SS316, 17-4PH, Alloy Steel, Duplex | AISI / ASTM Grades | Torque transmission and fire-safe design |
| Seals | Graphite, Viton, PTFE, NBR, HNBR | As per media compatibility | Fire-safe and leak-tight sealing |
Technical Specifications
| Specification | Available Options |
|---|---|
| Design Standards | API 6D, ASME B16.34, ISO 14313 |
| Size Range | DN50 to DN2000 / 2” to 80” |
| Pressure Rating | Class 150 to Class 2500 / PN16 to PN420 |
| End Connection | Flanged, Butt Weld, RTJ, Hub Connection |
| Body Design | 2 Piece, 3 Piece, Side Entry, Top Entry, Fully Welded |
| Bore Type | Full Bore, Reduced Bore |
| Operation | Lever, Gearbox, Pneumatic Actuator, Electric Actuator, Hydraulic Actuator |
| Testing Standards | API 598, API 6D, EN 12266, ISO 5208 |
| Optional Features | DBB, DIB-1, DIB-2, Fire Safe, Anti-Static, Stem Extension, Emergency Sealant Injection |
Applications in Germany and Europe
Valvesonly Europe manufactures trunnion ball valves for pipeline and process industries across Germany and Europe. These valves are used in oil and gas transmission pipelines, LNG terminals, refineries, petrochemical plants, chemical processing units, power plants, tank farms, compressor stations, and high-pressure utility systems.

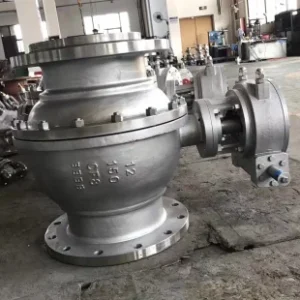

Casting Trunnion Ball Valve
Price range: €216.00 through €79,711.00

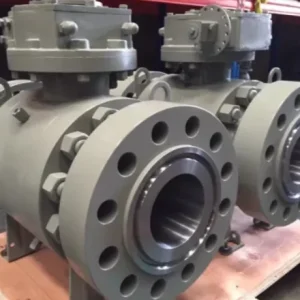

Forged Trunnion Ball Valve
Price range: €186.00 through €67,927.00
