F321 Valve Manufacturer in Germany

F321 valves use titanium stabilized austenitic stainless steel for piping systems exposed to welding and elevated-temperature service. ASTM A182 F321 is the forged valve-material designation associated with UNS S32100, while EN 1.4541 is the commonly referenced European grade.

F321 Valve Construction for Welded Piping Systems

F321 is derived from chromium-nickel austenitic stainless steel with titanium added for stabilization.

During welding or elevated-temperature exposure, unstabilized stainless steels can develop chromium-carbide precipitation at grain boundaries.

Titanium has a strong affinity for carbon and forms stable titanium carbides, reducing the amount of carbon available to combine with chromium.

This makes F321 useful for components that:

• Are welded during fabrication
• Experience repeated heating
• Operate at elevated temperature
• Require resistance to intergranular corrosion after thermal exposure

The benefit should be described as reducing susceptibility to sensitization, not guaranteeing that carbide precipitation can never occur.

Titanium Stabilized Stainless Steel Properties

F321 is an austenitic stainless steel containing chromium, nickel and a controlled titanium addition.

Important characteristics include:

• Austenitic microstructure
• Good weldability
• Good mechanical properties at elevated temperature
• Resistance to intergranular corrosion after suitable fabrication
• Good oxidation resistance within appropriate service limits

Alleima identifies 321/S32100 as a titanium-stabilized chromium-nickel stainless steel with good mechanical strength at elevated temperatures, while Outokumpu lists 321/1.4541 for welded pressure equipment, flanges and valves.

ASTM A182 F321 Material Composition

Typical chemistry includes:

The final chemistry should comply with the applicable ASTM A182 edition and the certified material test report.

Valve Configurations and Construction

• F321 Gate Valve: Straight through isolation with low pressure loss; suited to fully open or fully closed high temperature service.

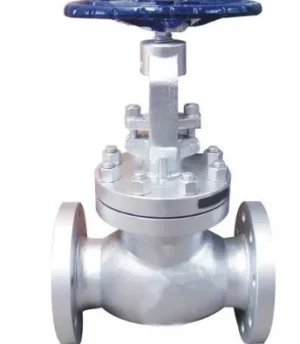

• F321 Globe Valve: Suitable for isolation, throttling and flow adjustment using linear disc movement.
• Construction: Bolted bonnet or suitable high pressure designs depending on service conditions.

Technical Specifications

Elevated Temperature Corrosion Performance

Titanium stabilization makes F321 useful after welding and thermal exposure, but it does not turn the grade into a universally corrosion-resistant alloy.

Its general corrosion resistance is broadly comparable to conventional 304-type stainless steel in many environments.

Selection should therefore consider:

• Process chemistry
• Chlorides
• Acids
• Operating temperature
• Oxidizing/reducing conditions
• Condensation
• Shutdown conditions

F321 is normally selected primarily for thermal stability and resistance to sensitization, not because it has exceptional chloride-pitting resistance.

Process and Heat Service Applications

F321 valves can be used in:

• Petrochemical process lines
• Power-generation systems
• Steam service
• Hot hydrocarbon piping
• Chemical-processing plants
• Heat-transfer systems
• Thermal equipment
• Exhaust and hot-gas systems
• High-temperature utility piping

Final valve selection should consider both material capability and the actual valve design. Pressure-temperature ratings, seats, packing and bonnet configuration may become the controlling limits before the base F321 material reaches its metallurgical temperature capability.
