CRYOGENIC GATE VALVE MANUFACTURERS IN GERMANY

Valvesonly Europe is a top-ranked Cryogenic Gate Valve Manufacturers in Germany that provides precision-engineered valves conforming to the stringent needs of low-temperature fluid handling systems. Our cryogenic gate valves provide tight sealing, long-lasting durability, and safe performance in extreme conditions.

What is a Cryogenic Gate Valve?

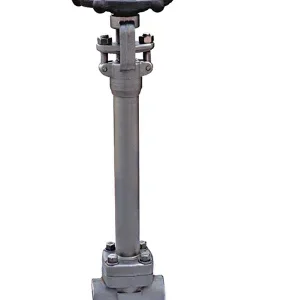

A cryogenic gate valve is a linear motion valve intended for on/off operation of cryogenic fluids like liquid nitrogen, oxygen, or LNG. It is equipped with a gate-shaped disc that reciprocates vertically to open or close the flow and is constructed with an extended bonnet for safe operation at cryogenic temperatures.

Cryogenic applications require valves which will resist thermal contraction and not leak or frost. Gate valves are needed for their low-pressure drop, bidirectional sealing, and full-bore characteristics, which make them suitable for isolating cryogenic pipelines and storage tanks.

Key Components of Cryogenic Gate Valve

  • Extended Bonnet
  • Gate Disc
  • Valve Body (Cryogenic-Grade Material)
  • Stem and Yoke Assembly
  • Seat Rings
  • Packing and Sealing System

Working Principle

When the valve is opened, the gate is pulled entirely out of the passage of the flow, which provides unobstructed flow. When closed, the gate moves down into the seat and completely shuts off the flow. The extended bonnet protects the stem and gland packing from the cold media to prevent freezing and ensure good sealing.

Benefits of Cryogenic Gate Valve

  • Ideal shut-off with small pressure drop
  • Full-bore design prevents fluid turbulence
  • Extended bonnet provides frost-free operation
  • May be used for horizontal or vertical mounting
  • Long life at low temperatures

Functions of Cryogenic Gate Valve

  • Full cryogenic fluid flow shut-off
  • Maintenance or safety operation isolation
  • Zero leakage in high-purity gas systems
  • Cryogenic pipeline pressure control

Industries

  1. LNG Storage and Distribution
  2. Industrial Gas Handling
  3. Air Separation Units
  4. Aerospace Fuel Systems
  5. Cryogenic Tankers and Skid Systems
  6. Marine
  7. Mining

Our cryogenic gate valves are made from stainless steel, CF8M, and duplex materials that are cryogenically resistant. All of the valves are subject to rigorous low-temperature testing to be compliant with global standards like API 600 and BS 6364.

Why Choose Us?

Valvesonly Europe provides excellence in quality, customization, and quick lead times. We deliver total technical support and export to more than 84 countries, providing reliable solutions to critical industries.

Depend upon Valvesonly Europe for reliable cryogenic flow control. Being top Cryogenic Gate Valve Manufacturers in Germany, we are committed to delivering performance, precision, and safety for your low-temperature valve requirements.

Description
Materials: SS304, SS316, CF8M, CF8, F51, F55, F53, WCB, WC6, WCC, LCB, LCC.
Class: 150 to 800.
Nominal Pressure: PN25 to PN100.
Size: 1/2” to 24”.
Operations: Lever Operated, Gear operated, Hand wheel Operated, Electric Actuated, and Pneumatic Actuated.
