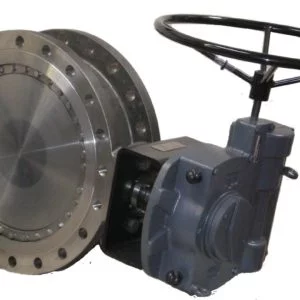

Triple Offset Butterfly Valve

Valvesonly Europe is your go-to source for Triple Offset Butterfly Valve manufacturer  in Germany and Italy.

Triple Offset Butterfly Valve explained:

A triple offset butterfly valve is an advanced type of butterfly valve designed to handle more severe service conditions, including high pressure, high temperature, and corrosive applications. This valve are different from the standard butterfly valves by incorporating three separate offsets that enhance its performance and sealing capabilities.

• First Offset is the axis of the shaft is offset from the centerline of the disc and the valve seat. This is responsible for cam action.
• In second offset the shaft is positioned behind the plane of the sealing surface, which provides a continuous sealing contact between the seat and the disc.
• The seating surface of the disc is angled or inclined in relation to the valve seat. This conical angle, often referred to as a “triple offset,” allows for a more reliable seal that can handle both bidirectional and high-pressure flow.

Valvesonly Europe, the triple offset butterfly valve manufacturer in Germany and Italy.

Description:

1. Body: ASTM A216 WCB
2. Operation: Gear Operated, Electric Actuated, Pneumatic Actuated
3. End Connection: Flanged
4. Nominal Diameter: DN50 to DN500
5. Nominal Pressure: PN10 to PN63, Class150 to Class1500
