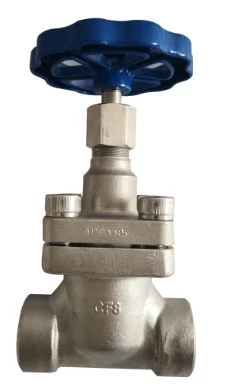

Cryogenic Short Stem Globe Valve

From: 305.00 From: 202.94

From: 305.00 From: 202.94
Clear
Custom Enquiry

Description

Cryogenic Short Stem Globe Valve

Body: SS304, SS316, F304, F316

Bonnet: Stainless Steel

Stem: Stainless Steel

Packing: PTFE

Disc face ring :PTFE

Nominal diameter: DN10 to 100mm

Nominal Pressure: PN16, PN25, PN40, PN64, Class150, Class300

Applicable medium: O2, N2, Ar, LNG

Applicable temperature: -80℃ to +80℃

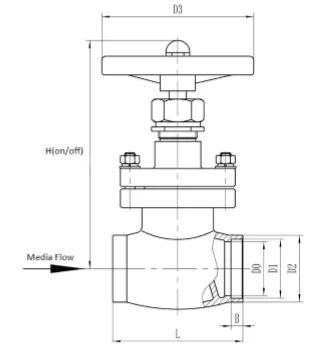

Dimension

DN (mm) H(on)mm H(off)mm L L1 D1 D2 D3
10 134 124 61 61 12 15 22
15 134 124 61 61 15 18.5 26
20 176 163 81 81 23 24.5 32
25 176 163 81 81 26 26 39
32 232 217 102 102 35 39 46
40 232 217 102 102 42 46 52
50 230 209 127 127 54 58 66
65 252 232 150 150 68 71 85
80 310 282 182 182 84 89 100
100 358 325 325 325 104 109 121
