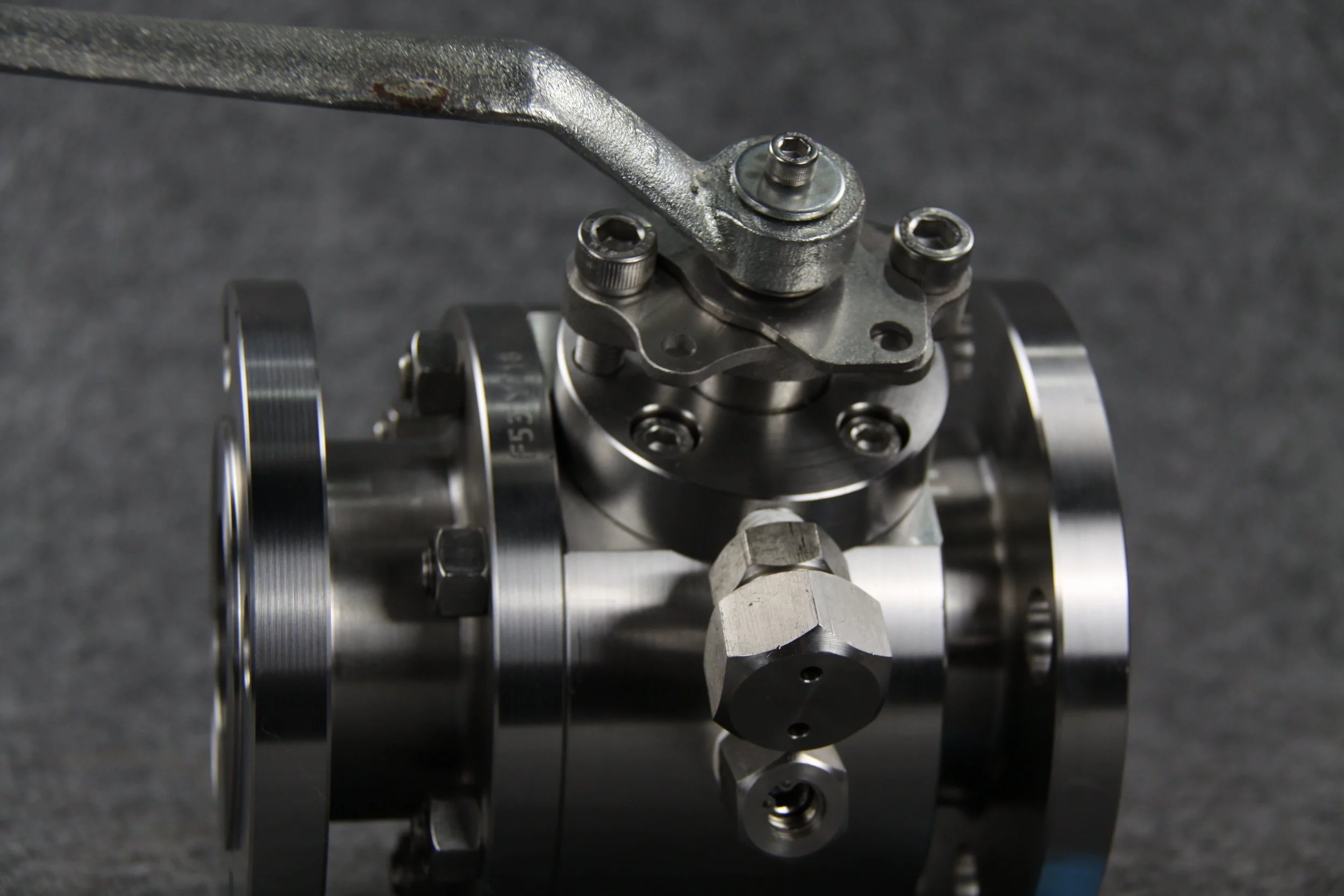

Duplex 3 Piece Ball Valve

Price range: €556.00 through €1,698.00

21 People viewing this product right now!

Free shipping Free shipping on orders over $30,000.

Custom Engineering Support Expert assistance for sizing, selection, and application guidance.

Dedicated Support Professional sales & technical support for all enquiries

Duplex 3 Piece Ball Valve

1.Body: Duplex Stainless Steel, CF8, CF8M, Cast Iron, Carbon Steel

2. Cap: CF8, CF8M, Cast Iron, Carbon Steel

3. Ball: Duplex Stainless Steel, CF8, CF8M, Cast Iron, Carbon Steel

4. Stem: SS304, SS316

5. Gland Nut: SS304, SS316

6. Seat: PTFE, RTFE

7. Seal: PTFE

8. Packing: PTFE

9. Thrust Washer: PTFE

10. Spring Washer: SS304

11. Stem Nut: SS304

12. Bolt: SS304

13. Nut: SS304

14. Spring Washer: SS304

15. Handle: Stainless Steel

16. Locking Device: Stainless Steel

17. Handle Sleeve: PVC

Full port or Reduced Port

Nominal Size: DN15 to DN150

Nominal Pressure: PN1.0 to PN4.0, Class150 to Class300

Working Temperature: -20°C to +180°C

Face to Face Dimension: DIN3202

Inspection Testing: API598, EN12266

Dimensions Unit: mm
