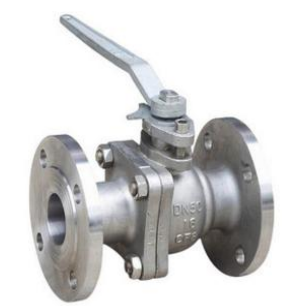

Super Duplex 2 Piece Ball Valve

In Stock
Custom Enquiry
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service

Description

Super Duplex 2 Piece Ball Valve

Body: Super Duplex Stainless Steel, Duplex Stainless Steel, Alloy Steel

Ball: Super Duplex Stainless Steel, Duplex Stainless Steel, Alloy Steel

Seats: PTFE, HDPE, RPTFE, PPL

Seals: EPDM

Stem: Super duplex stainless steel

Design and Manufacture Standard: API 6D, ANSI B16.34, BS5351

Face to Face Dimensions: ANSI B16.10, ASME B16.10

Flange End Dimensions: ANSI B16.5

Butt Welded Dimensions: ANSI B16.25

Inspection and Test: API598, API 6D

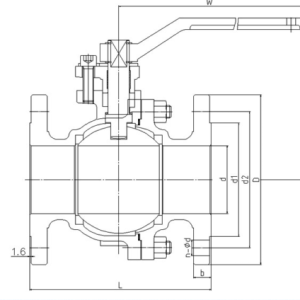

Dimensions

NPS in 2 2 1/2 3 4 5 6 8
d mm 51 64 76 102 127 152 203
L(RF) mm 216 241 283 305 381 403 502
d1 mm 92 105 127 157 186 216 270
d2 mm 127 149 168.5 200 235 270 330
D mm 165 190 210 254 279 318 381
b mm 23 26 29 32 35 37 42
n-?d mm 8-19 8-22 8-22 8-22 8-22 12-22 12-25
H mm 140 160 180 208 220 290 300
W mm 200 290 290 360 600 800 1000
