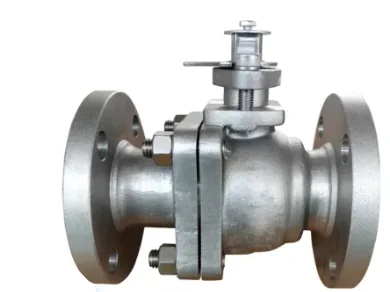

Super Duplex Floating Ball Valve
Body:Â Super Duplex Stainless Steel
Ball: Super Duplex Stainless Steel
Seats: PTFE, HDPE, RPTFE, PPL
Seals:Â EPDM
Stem:Â Super duplex stainless steel
Nominal Size: DN50 to DN200
Nominal Pressure: Class150 to Class2500, PN16 to PN63

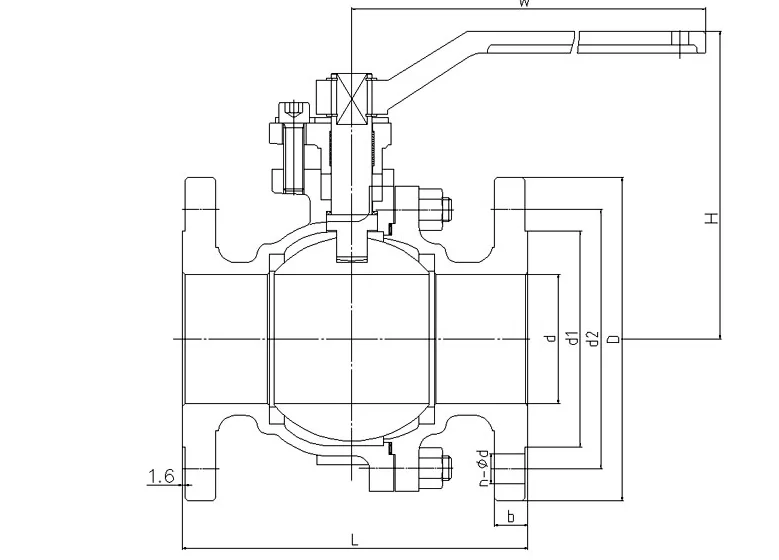

Dimensions                                          Unit: mm
Class150
| DN | d | L(RF) | d1 | d2 | D | b | n-Фd | H | W |
| 50 | 51 | 216 | 92 | 127 | 165 | 23 | 8-Ф19 | 140 | 200 |
| 65 | 64 | 241 | 105 | 149 | 190 | 26 | 8-Ф22 | 160 | 290 |
| 80 | 76 | 283 | 127 | 168.5 | 210 | 29 | 8-Ф22 | 180 | 290 |
| 100 | 102 | 305 | 157 | 200 | 254 | 32 | 8-Ф22 | 208 | 360 |
| 125 | 127 | 381 | 186 | 235 | 279 | 35 | 12-Ф22 | 220 | 600 |
| 150 | 152 | 403 | 216 | 270 | 318 | 37 | 12- Ф22 | 290 | 800 |
| 200 | 203 | 502 | 270 | 330 | 381 | 42 | 12- Ф25 | 300 | 1000 |
