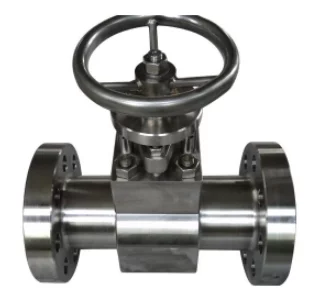

Hastelloy C276/B3 Globe Valve
Connections: Flanged, Threaded, Socket welded, ButtWeld
Pressure rating: PN 1.0 to 25Mpa, Class 150 to 600
Size: DN 6 to 500 mm, NPS 1/4″ to 20″
Temperature: -198°c to 450°c
Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS1414
Face to face (end to end): ANSI B16.10, API 6D
Flanged connection: 2″ to 24″ , ANSI B16.5, 26″ to 36″, MSS-SP-44 to API605
Test and inspection: API 598, API 6D
Butt welded end: ANSI B16.5
Operations: Handwheel, Electric Actuated, Pneumatic Actuated
Body: Hastelloy c276/B3
Gate, Disc: Hastelloy, 13Cr
Stem: Hastelloy, 13Cr
Seat Ring: SS304/Nylon, Stellite, SS304, SS316
Dimensions                       Unit: mm
| DN | L | H | W |
| 15 | 130 | 218 | 120 |
| 20 | 150 | 260 | 140 |
| 25 | 160 | 275 | 160 |
| 32 | 180 | 282 | 180 |
| 40 | 200 | 332 | 200 |
| 50 | 230 | 350 | 240 |
| 65 | 290 | 405 | 280 |
| 80 | 310 | 360 | 280 |
| 100 | 350 | 412 | 320 |
| 125 | 400 | 462 | 360 |
| 150 | 480 | 510 | 400 |
| 200 | 600 | 715 | 400 |
| 250 | 650 | 789 | 450 |
| 300 | 750 | 925 | 500 |
| 350 | 850 | 980 | 650 |
| 400 | 950 | 1030 | 700 |
