Description

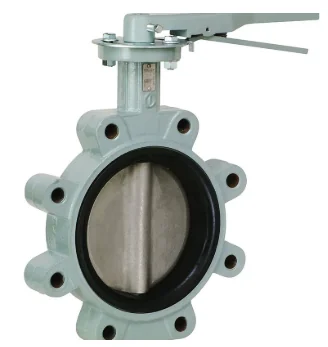

Titanium Lug Butterfly Valve
Main Material : Titanium, Duplex, Super Duplex, Hastelloy C276/B3, Inconel, F347, F44, F317L, F321, Monel, Alloy 20, CF8, CF8M, CF3, CF3M, CN7M, LC1LC2, LC3, LCB, LCC, Etc.,
| Standard Production Range | |||
| Items | ANSI Class 150 | ANSI Class 300 | ANSI Class 600 |
| Rating – PSI | 285 | 740 | 1440 |
| Rating – BAR | 20 | 50 | 100 |
| Size – Inch | 2 to 60 | 2 to 48 | 2 t0 24 |
| Size – mm | 50 to 1500 | 50 to 1200 | 50 to 600 |
| Testing | API 598 | ||
| Face to face spec. | ANSI B16.10, API 609, MSS-SP-68, ISO 5752 | ||
| End Flange Spec. | ASME B16.5: Class 150, 300, 600,800, 1500, 2500 | ||
| JIS B2210: 10K, 16K, 20K | |||
| DIN ISO PN10, PN16, PN25, PN40 | |||
| Connection | Wafer, Lugged, Double Flanged | ||
| Actuator – Manual | Lever Handle, Worm Gear Operator | ||
| Actuator – Automatic | Electric Motor, Pneumatic Double Acting, | ||
| Pneumatic Spring Return | |||
| Main Materials: | |||
| Items | ANSI Class 150 | ANSI Class 300 | ANSI Class 600 |
| BODY | Titanium | ||
| 316 SS (A351-CF8M) | |||
| Duplex Stainless Steel (2205,2507) | |||
| Hastelloy, Alloy, Monel, Super Duplex, F347,Carbon Steel (A216-WCB) | |||
| Aluminum Bronze | |||
| Titanium Alloy | |||
| DISC | 316 SS (A351-CF8M) | ||
| Duplex Stainless Steel (2205,2507) | |||
| Hastelloy | |||
| Aluminum Bronze | |||
| Titanium Alloy | |||
| STEM | 17 – 4PH (A564-630) , 316SS | ||
| SEAT | Soft Seat: PTFE/RTFE + FPM Rubber Energizer | ||
| Metal Seat: 316L SS + 316 SS Backup Ring | |||
| Fire Safe Seat: 316L SS + Soft Seat Assembly | |||
| SHAFT BEARING | 316 SS Bonded to Dupont PTFE | ||
| PACKING SEAL | PTFE, Graphite | ||
| Seat Materials And Rating: | |
| PTFE | Class VI, Bubble Tight |
| RTFE | Class VI, Bubble Tight |
| 316 SS | Class V |
| INCONEL | Class V |
| PTFE + 316 SS | Class VI Bubble Tight |
| Class V w/ Preferred Flow After Fire | |
| RTFE + 316 SS | Class VI Bubble Tight |
| Class V w/ Preferred Flow After Fire | |

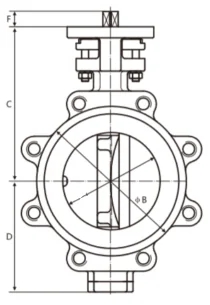

Dimension:
150LB
| Size | L | H | Ho | D1 | D2 | M | Z-d | WT(kg) | ||||||
| in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | |||
| 6″ | 150 | 2.75 | 70 | 6.89 | 175 | 21.45 | 545 | 9.50 | 241.5 | 8.50 | 216 | M20 | 8-22 | 28 |
| 8″ | 200 | 2.81 | 71 | 8.26 | 210 | 24.21 | 615 | 11.75 | 298.5 | 10.62 | 270 | M20 | 8-22 | 36 |
| 10″ | 250 | 3.00 | 76 | 9.84 | 250 | 27.36 | 695 | 14.25 | 362 | 12.75 | 324 | M24 | 12-25 | 53 |
| 12″ | 300 | 3.38 | 86 | 11.24 | 285 | 32.78 | 830 | 17.00 | 432 | 15.00 | 381 | M24 | 12-25 | 74 |
| 14″ | 350 | 3.63 | 92 | 12.60 | 320 | 35.43 | 900 | 18.75 | 476 | 16.25 | 413 | M27 | 12-29 | 110 |
| 16″ | 400 | 4.00 | 102 | 13.98 | 355 | 38.58 | 980 | 21.25 | 540 | 18.50 | 470 | M27 | 16-29 | 138 |
| 18″ | 450 | 4.50 | 114 | 14.96 | 380 | 40.55 | 1030 | 22.75 | 578 | 21.00 | 533 | M30 | 16-32 | 180 |
| 20″ | 500 | 5.00 | 127 | 16.34 | 415 | 43.70 | 1110 | 25.00 | 635 | 23.00 | 584 | M30 | 20-32 | 196 |
| 24″ | 600 | 6.06 | 154 | 18.70 | 475 | 51.37 | 1305 | 29.50 | 749.5 | 27.25 | 692 | M33 | 20-35 | 400 |
| 30″ | 750 | 6.50 | 165 | 22.38 | 580 | 60.03 | 1525 | 36.00 | 914 | 33.75 | 857 | M33 | 28-35 | 482 |
| 36″ | 900 | 8.00 | 203 | 26.77 | 680 | 69.48 | 1765 | 42.75 | 1085 | 40.25 | 1022 | M39 | 32-41 | 498 |
300LB
| Size | L | H | Ho | D1 | D2 | M | Z-d | WT(kg) | ||||||
| in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | |||
| 6″ | 150 | 3.00 | 76 | 6.89 | 175 | 21.45 | 545 | 10.63 | 270 | 8.50 | 216 | M20 | 12-22 | 29 |
| 8″ | 200 | 3.50 | 89 | 8.26 | 210 | 24.21 | 615 | 13.00 | 330 | 10.62 | 270 | M24 | 12-26 | 38 |
| 10″ | 250 | 4.50 | 114 | 9.84 | 250 | 27.36 | 695 | 15.24 | 387 | 12.75 | 324 | M27 | 16-29 | 58 |
| 12″ | 300 | 4.50 | 114 | 11.24 | 285 | 32.78 | 830 | 17.76 | 451 | 15.00 | 381 | M30 | 16-32 | 81 |
| 14″ | 350 | 5.00 | 127 | 12.60 | 320 | 35.43 | 900 | 20.24 | 514 | 16.25 | 413 | M30 | 20-32 | 119 |
| 16″ | 400 | 5.50 | 140 | 13.98 | 355 | 38.58 | 980 | 22.30 | 591 | 18.50 | 470 | M33 | 24-35 | 149 |
| 18″ | 450 | 5.98 | 152 | 14.96 | 380 | 41.55 | 1030 | 24.72 | 628 | 21.00 | 533 | M33 | 24-35 | 198 |
| 20″ | 500 | 5.98 | 152 | 16.34 | 415 | 43.70 | 1110 | 27.00 | 686 | 23.00 | 584 | M33 | 24-35 | 215 |
| 24″ | 600 | 7.00 | 178 | 18.70 | 475 | 51.37 | 1305 | 32.00 | 813 | 27.25 | 692 | M39 | 24-41 | 436 |
| 30″ | 750 | 9.01 | 229 | 22.38 | 580 | 60.03 | 1525 | 39.25 | 997 | 33.75 | 857 | M45 | 28-49 | 528 |
| 36″ | 900 | 9.88 | 241 | 26.77 | 680 | 69.48 | 1765 | 46.00 | 1168 | 40.25 | 1022 | M50 | 32-52 | 843 |
