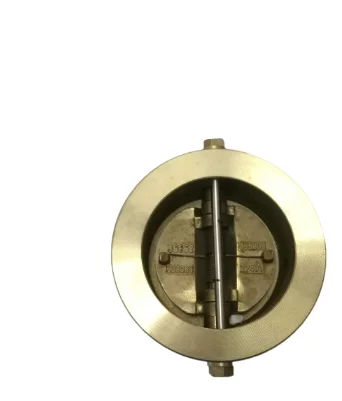

ALUMINIUM DUAL PLATE WAFER CHECK VALVE

0.00

0.00

This product is currently out of stock and unavailable.

Custom Enquiry

Description

Aluminium Dual Plate Wafer Check Valve

Body: Aluminium Bronze( C95800, C83600, C84400, B62)

Disc: Aluminium Bronze, SS304, SS316

Trim: Aluminium Bronze, SS304, SS316

Gland Packing: Graphite, PTFE

Nominal Size: 2″ to 24″

Nominal Pressure: PN 1.0 to 25 Mpa, Class 150 to Class 2500

Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS 1414, BS 5352, DIN 3352

Face to face (end to end): ANSI B16.10, API 6D, ASME B16.10, EN 558, DIN 3202

Flanged connection: 2″ to 24″ , ANSI B16.5, 26″ to 36″,  MSS-SP-44 to API605

Test and inspection: API 598, API 6D, DIN 3230

Butt welded end: ANSI B16.5

Dimensions
SizeDD1D2LRT
2″1026532542925
2.5″1217842.1603629.3
3″13494826743.427.7
4″17111797.56755.626.7
5″193145111.88367.638.6
6″2191711279578.646.3
8″276222161.7127104.466
10″336276213.414012870.7
12″406327237.9181156.7102
14″448375312.2184179.889.2
16″511416351191198.492.5
18″546467409203226.296.2
20″603514451.9213248.2102.7
24″714616554.7222297.4107.3
