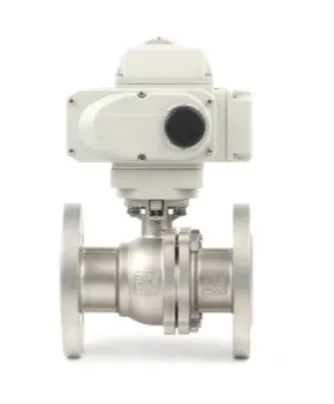

Electric Actuated Floating Forged Ball Valve

Body: Carbon Steel, CF8M, CF8M

Bonnet: Carbon Steel, CF8M, CF8M

Ball: CF8, CF8M

Seat: PTFE

Packing: PTFE

Nominal Diameter: DN15 to DN250

Nominal Pressure: PN1.0 to PN6.4, Class150 to Class300

Actuation Type: Electric Actuated

Input and Output Signal: DC 4-30mA, DC 0-10V, DC 1-5V

Voltage: AC110-240V 380V 50/60Hz, DC 12V, DC 24V

Power Supply: 24V AC, 24V DC, 110V AC, 230V AC

Dimensions

PN16

Size DN L D D1 D2 b Z-Φd H L0
1/2″ 15 130 95 65 45 14 4-Φ14 78 140
3/4″ 20 130 105 75 55 14 4-Φ14 84 160
1″ 25 140 115 85 65 14 4-Φ14 95 180
1 1/4″ 32 165 135 100 78 16 4-Φ18 150 250
1 1/2″ 40 165 145 110 85 16 4-Φ18 150 300
2″ 50 203 160 125 100 16 4-Φ18 170 350
2 1/2″ 65 222 180 145 120 18 4-Φ18 195 350
3″ 80 241 195 160 135 20 8-Φ18 215 400
4″ 100 305 215 180 155 20 8-Φ18 250 500
5″ 125 356 245 210 185 22 8-Φ18 265 600
6″ 150 394 280 240 210 24 8-Φ18 270 800
8″ 200 457 335 295 265 24 12-Φ25 330 800
10″ 250 533 405 355 320 26 12-Φ25 450 1300

PN25

Size DN L D D1 D2 b Z-Φd H L0
1/2″ 15 130 95 65 45 16 4-Φ14 103 100
3/4″ 20 130 105 75 55 16 4-Φ14 112 160
1″ 25 140 115 85 65 16 4-Φ14 123 160
1 1/4″ 32 165 135 100 78 18 4-Φ18 150 250
1 1/2″ 40 180 145 110 85 18 4-Φ18 156 250
2″ 50 200 160 125 100 20 4-Φ18 172 350
2 1/2″ 65 220 180 145 120 22 8-Φ18 197 350
3″ 80 250 195 160 135 22 8-Φ18 222 450
4″ 100 280 230 190 160 24 8-Φ18 253 450
5″ 125 320 270 220 188 28 8-Φ25 275 600
6″ 150 360 300 25 218 30 8-Φ25 286 800
8″ 200 400 360 310 278 34 12-Φ25 340 1200
10″ 250 530 425 370 332 36 12-Φ25 470 1400

PN40

Size DN L D D1 D2 b Z-Φd H L0
1/2″ 15 140 95 65 45 16 4-Φ14 103 100
3/4″ 20 152 105 75 55 16 4-Φ14 112 160
1″ 25 165 115 85 65 16 4-Φ14 123 160
1 1/4″ 32 178 135 100 78 18 4-Φ18 150 250
1 1/2″ 40 190 145 110 85 18 4-Φ18 156 250
2″ 50 216 160 125 100 20 4-Φ18 172 350
2 1/2″ 65 241 180 145 12 22 8-Φ18 197 350
3″ 80 2836 195 160 135 22 8-Φ18 22 450
4″ 100 305 230 190 160 24 8-Φ23 253 450
5″ 125 381 270 220 188 28 8-Φ25 275 600
6″ 150 403 300 250 218 30 8-Φ25 286 800
8″ 200 502 375 320 282 38 12-Φ30 340 1200
10″ 250 568 445 385 345 42 12-Φ34 470 1400
