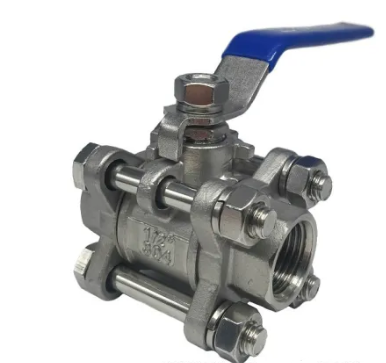

Titanium Gr.2 3pc Ball Valve

From: 1,705.00 From: 1,604.00

From: 1,705.00 From: 1,604.00
Clear
Custom Enquiry

Description

Titanium Gr.2 3pc Ball Valve

1. Body: Titanium Grade 2, Titanium Grade 5, CF8, CF8M, Cast Iron, Carbon Steel

2. Ball: SS304, SS316

3. End Cap: CF8, CF8M

4. Bolting: A193-B8

5. Seat: PTFE, RPTFE, PPL

6. Packing: Graphite, PTFE

7. Stem: SS304, SS316

8. Gland: SS304

9. Handle: SS304

10. Nut: A193-B8

Nominal Size: 1/4″ to 4″

Nominal Pressure: 1000WOG to 1000PSI, 1.6 to 6.4Mpa

Connection: NPT, BSP, BSPT, DIN259/2999, SW, BW, Clamp, Flanged

Port: Full Port, Reduced Port

Handle: Lever Handle, Locking Device Handle

Operation: Manual, Pneumatic, Electric Actuated

Design Standard: ASME B16.34

Face to Face Dimension: DIN3202, EN1266

Inspection and Testing: API 598

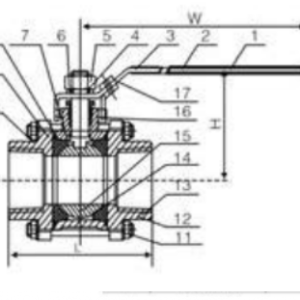

Dimensions

SIZE NPS 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
DN 6 10 15 20 25 32 40 50 65 80 100
L 65 65 75 85 95 115 125 150 175 210 260
D 11.6 13 15 20 25 32 38 50 65 80 100
H 44 44 46 52 57 80 88 94 130 140 165
W 100 100 100 124 124 154 154 154 260 260 284



Additional information

Body Material

Class

Connection Type

Size

,
