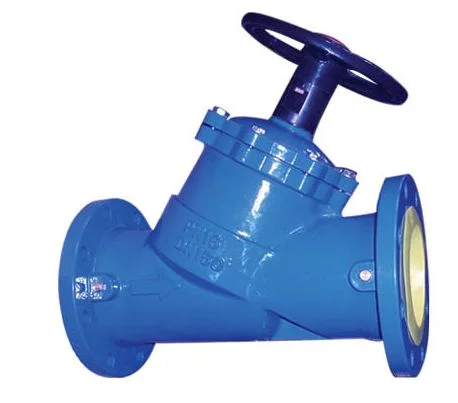

Triple Duty Valve
€60.00 – €1,995.00Price range: €60.00 through €1,995.00
In Stock
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs,
- Pick up at a collection point is possible
- 30 days to change your mind and free returns
- Day and night customer service
Description
Triple Duty Valve
| S.No | Parts | Materials |
| 1 | Body | Cast Iron |
| 2 | Cover Flange | Cast Iron |
| 3 | Disc | A536 Nickle Plated/Bronze B62 |
| 4 | Stem | SS410 |
| 5 | Seat Guide | A536 Nickle Plated Ductile Iron |
| 6 | Flange Gland | Cast Iron |
| 7 | Packing | Non-Asbestos |
| 8 | Spring | 300 Series Stainless Steel |
| 9 | Packing Gland | Cast Iron |
| 10 | Stem Guide | Ductile Iron |
| 11 | Seat Ring | A536 Nickle Plated Ductile Iron |
| 12 | Seat Seal | EPDM O-Ring |
| 13 | Disc Seat | EPDM O-Ring |
Dimensions
| DN | D1 | D2 | D3 | n-ΦD | L | T | f | H(Min) | H(max) | A | B |
| 65 | 118 | 145 | 185 | 4-Φ19 | 304 | 19 | 3 | 243 | 272 | 187 | 117 |
| 80 | 132 | 160 | 200 | 8-Φ19 | 305 | 19 | 3 | 273 | 307 | 208 | 98 |
| 100 | 156 | 180 | 220 | 8-Φ19 | 355 | 19 | 3 | 273 | 307 | 244 | 111 |
| 125 | 184 | 210 | 250 | 8-Φ19 | 445 | 19 | 3 | 349 | 400 | 305 | 140 |
| 150 | 211 | 240 | 285 | 8-Φ23 | 525 | 19 | 3 | 362 | 419 | 359 | 168 |
| 200 | 266 | 295 | 310 | 12-Φ23 | 716 | 20 | 3 | 520 | 579 | 481 | 233 |
| 250 | 319 | 355 | 105 | 12-Φ28 | 762 | 22 | 3 | 585 | 653 | 516 | 248 |
| 300 | 370 | 410 | 460 | 12-Φ28 | 967 | 24.5 | 4 | 677 | 762 | 611 | 356 |
Additional information
| Body Material | Cast iron |
|---|---|
| Class | 125 |
| Size | 10", 12", 14", 16", 18", 2 1/2", 2", 20", 3", 4", 5", 6", 8" |
