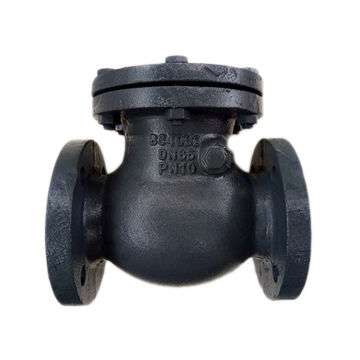

Super Duplex 5A Swing Check Valve
Super Duplex 5A Swing Check Valve - Image 2

Super Duplex 5A Swing Check Valve

€334.00 – €2,404.00Price range: €334.00 through €2,404.00
In Stock
Custom Enquiry
Add to wishlist
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: N/A
Categories: , , ,

Description

Super Duplex 5A Swing Check Valve

Body: Super Duplex Stainless Steel 4A, 5A, 6A, Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel,
WC6, WC9, C5, C12, LCB, CF3M

Disc: Super Duplex Stainless Steel, Duplex Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6,

WC9, ?C5, C12, LCB, CF3M, Super Duplex Stainless Steel 4A, 5A, 6A

Trim: SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy, Alloy 20, Duplex Stainless Steel, Super

Duplex Stainless Steel

Gland Packing: Graphite, PTFE

End Connections: Flanged, Socketweld, Buttweld

Operations: Handwheel Operated, Electric Actuated, Pneumatic Actuated

Nominal Size: DN40 to DN600
Nominal Pressure: PN 1.0 to 25 Mpa, Class 150 to 2500
Design and Manufacture Standard: ANSI B16.34, API 6D, DIN 3840, BS EN 1868
Face to Face Dimensions: ANSI B16.10, API 6D, DIN3202, BS EN558-1
Flange End Dimensions: ANSI B16.5, DIN 2543, BS EN 1092-1
Buttweld End Dimensions: ANSI B16.25
Inspection and Test: API598, API6D, DIN3230, BS EN 12569

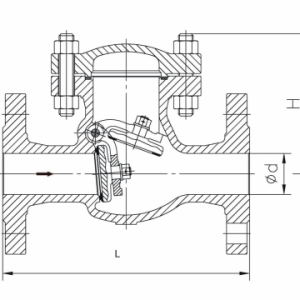

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?Unit: mm
PN16
DN L H
40 180 129
50 200 147
65 240 161
80 260 178
100 300 190
125 350 265
150 400 285
200 500 345
250 600 394
300 700 420
350 800 455
400 900 520
450 1000 565
500 1100 610
600 1300 740

Additional information

Body Material

Super Duplex
Class

150
Connection Type

Flanged
Size

1 1/2", 1", 1/2", 2", 3"
