Pneumatic Metal Seat Flanged Ball Valve
Pneumatic Metal Seat Flanged Ball Valve Air pressure 0.4~0.7MPa Valve size DN15-150 Body ratings 1.6MPa 4.0MPa 6.4MPa Medium Temp -20°C ~ +250°C Control type spring return type, double acting type Action mode switch to cut off Body connections wafer Body material WCB, CF8, SUS304, SUS316, food grade material Disc material 2Cr13, F304, F316, WCB, FZG1Cr18Ni9Ti, ZG1Cr18Ni12Mo2Ti Stem material 2Cr13, 1Cr18Ni9Ti, 1Cr18Ni12Mo2Ti Seal ring Intensified PTFE, digital polystyrene Packing PTFE, Grafoil Leakage Compliance with standardANSIB16.104 5 Seal type Elastic seal, high temperature digital polystyrene Applicable medium Water, oil, nitric acid, acetic acid, viscous fluid and strong oxidizing medium Protection level IP67 Manufacturing standards JB/T8692-1998 Dimension: DN(mm) […]
-

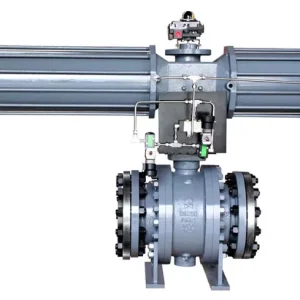

Pneumatic Trunnion Casting Ball Valve
Pneumatic Trunnion Casting Ball Valve 1.Materail Cast Material: WCB, CF8, CF8M, CF8C, Duplex Stainless Steel, etc. Forged Material: A105, F304, F316, F317, F347, F11, F51, F59, ETC. Other Materials available upon Request, available in Various Trim and Seat (Resilient and Metal) Materials To Suit Different Service Conditions. 2. Available Operation Normal Handle or Lockable Handle […]
-
Pneumatic Trunnion Forged Ball Valve
Pneumatic Trunnion Forged Ball Valve Size: 2″-56″ Pressure Class :150-1500 Material:WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L Design & Manufacture Std:API 608,API 6D,BS 5351,ASME B16.34 Face to Face Std:API B16.10,API 6D,DIN 3202 End Connection Std:ASME B16.5,ASME B 16.47 ASME B 16.25,DIN2543-2550 Test Standard:ISO5208,API 6D,BS 6755 Structure Type:One, Two or Three-Piece […]
-

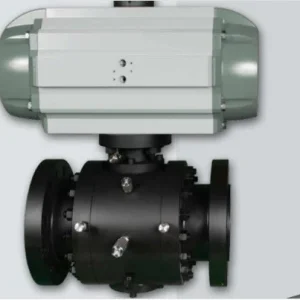

Pneumatic Trunnion Forged Metal Seat Ball Valve
Specification: Size:2″-56″ Pressure Class :150-1500 Material:WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L Design & Manufacture Std:API 608,API 6D,BS 5351,ASME B16.34 Face to Face Std:API B16.10,API 6D,DIN 3202 End Connection Std:ASME B16.5,ASME B 16.47 ASME B 16.25,DIN2543-2550 Test Standard:ISO5208,API 6D,BS 6755 Structure Type:One, Two or Three-Piece Body, Reduced Bore,Full BoreOperated WayLever, […]
