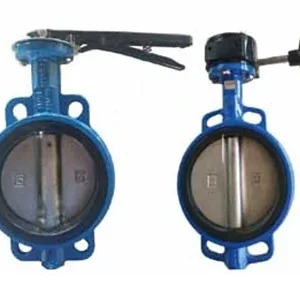

Wafer Butterfly Valve

Function & Working
Wafer butterfly valves regulate flow using a quarter-turn disc mounted on a central shaft. The wafer-style body fits between flanges, providing a lightweight and compact solution.

Advantages

• Compact design with minimal space requirement

• Cost-effective for large diameter pipelines

• Low pressure drop and quick operation

Types Offered

• Concentric rubber-lined wafer butterfly valve

• Double-offset wafer butterfly valve

Industries Served
HVAC, Water Treatment, Fire Protection, Marine, Power Plants

Technical Specifications

• Design Standards: EN 593, API 609

• Body Materials: Ductile Iron, WCB, CF8, CF8M

• Pressure Ratings: PN10–PN40 / Class 150–300

• Size Range: DN50–DN2000

• End Connections: Wafer, Lug

• Actuation Options: Manual lever, Gearbox, Pneumatic, Electric

• Special Features: Replaceable seat, epoxy-coated body for corrosion resistance
