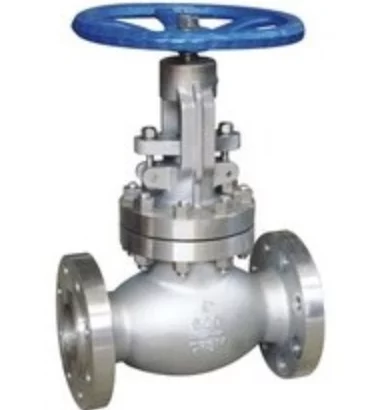

Alloy 20 Flanged Globe Valve

Alloy 20 Flanged Globe Valve

In Stock
Custom Enquiry
Add to wishlist
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
Categories: , , ,

Description

Alloy Flanged Globe Valve

Body: Alloy 20, WC6, WC9

Gate, Disc: Alloy 20, 13Cr

Stem: Alloy 20, 13Cr

Seat Ring: A105/Nylon, Stellite

Packing: PTFE, Graphite

Connections: Flanged, Threaded, Socket welded, ButtWeld

Operations: Handwheel, Electric Actuated, Pneumatic Actuated

Nominal Size: DN15 to DN400

Nominal Pressure: PN 1.0 to 2.5Mpa, Class 150 to Class2500

Temperature: -198°c to 450°c

Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS1414

Face to Face Dimension: ANSI B16.10, API 6D

Flanged End Dimension: ANSI B16.5, MSS-SP-44 to API605

Butt welded End: ANSI B16.5

Inspection and Test: API 598, API 6D

Dimensions                                             Unit: mm

DN L H W
15 130 218 120
20 150 260 140
25 160 275 160
32 180 282 180
40 200 332 200
50 230 350 240
65 290 405 280
80 310 360 280
100 350 412 320
125 400 462 360
150 480 510 400
200 600 715 400
250 650 789 450
300 750 925 500
350 850 980 650
400 950 1030 700
