Description

Bronze Swing Check Valve

Body: Bronze, Aluminium Bronze(C95800, C95500, C95200)

Disc: Bronze, Aluminium Bronze(C95800, C95500, C95200)

Hinge: Bronze, Aluminium Bronze(C95800, C95500, C95200)

Hinge Pin: Bronze, Aluminium Bronze(C95800, C95500, C95200)

Gasket: SS304+ Graphite

Packing: Graphite

End Connection: Flanged, Buttweld, Socketweld

Operation: Handwheel, Electric Actuated, Pneumatic Actuated

Nominal Size: DN50 to DN500

Nominal Pressure: Class150 to Class300

Design and Manufacture Standard: API 6D, API 608, BS5351

Face to Face Dimension: ANSI B16.10, API 6D

Flanged End Connection: ANSI B16.5

Buttweld End: ANSI B16.25

Inspection and Test: API 598, API 6D

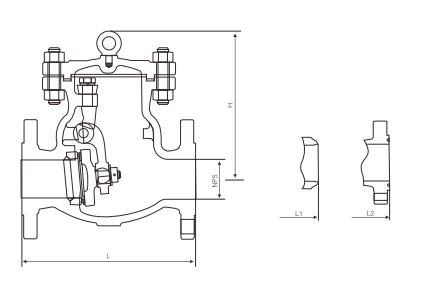

Dimensions                                                                            Unit: mm

Class150

DN L L1 L2 H
50 203 203 216 152
65 216 216 229 165
80 241 241 254 175
100 292 292 305 204
150 356 356 368 293
200 495 495 508 353
250 622 622 635 390
300 699 699 711 432
350 787 787 800 475
400 864 864 876 525
450 978 978 991 582
500 978 978 991 627
