BRONZE WAFER CHECK VALVE

0.00

In Stock

Custom Enquiry

Description

Bronze Wafer Check Valve

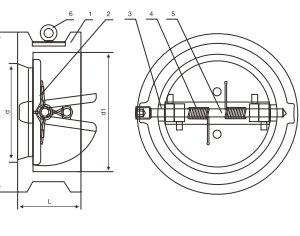

1. Body: Bronze, Aluminium Bronze(C95800, C95500, C95200)

2. Plate: Bronze, Aluminium Bronze(C95800, C95500, C95200)

3. Stop Pin: Bronze, Aluminium Bronze(C95800, C95500, C95200)

4. Back Spring: Inconel

5. Hinge Pin: Bronze, Aluminium Bronze(C95800, C95500, C95200)

6. Eyebolt: Bronze, Aluminium Bronze(C95800, C95500, C95200)

End Connection: Wafer

Nominal Size: DN50 to DN600

Nominal Pressure: Class150 to Class900

Design and Manufacture Standard: API 6D, API 608, BS5351

Face to Face Dimension: ANSI B16.10, API 6D

Flanged End Connection: ANSI B16.5

Buttweld End: ANSI B16.25

Inspection and Test: API 598, API 6D

Dimensions                                                                                   Unit: mm

Class150

DNLDdD1
50601035156
65671226573
80731358088
10073173102108
15098220152160
200127277203210
250146337254266
300181407305310
350184448350355
400191512400405
450203547450455
500219604500505
600222715600605
