Super Duplex Knife Gate Valve

€128.00 – €3,939.00
In Stock
Custom Enquiry
Add to wishlist
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs,
  • Pick up at a collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: N/A
Categories: , ,

Description

Super Duplex knife Gate Valve

Body: SAF2507, SS2507

Knife: SS304, SS316

Disc: SS304, SS316L

Wedge: SS304, SS316, SS316L

Packing: PTFE

Seal Ring: Polyurethane, EPDM, NBR, VITON

Yoke: SS304, SS316

Packing Gland: CF8, WCB

Nominal Size: DN50 to DN450

Nominal Pressure: Class150 to Class300, PN10

End Type: Wafer Type, Lug Type

Actuation: Handwheel, Electric Actuated, Pneumatic Actuated

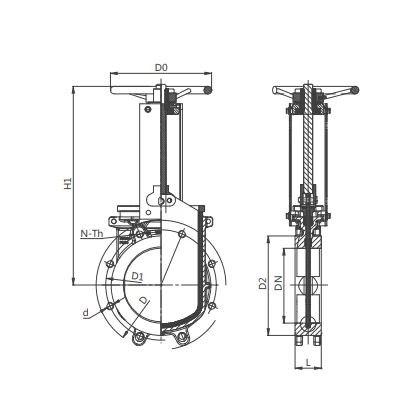

Dimensions                                                                                                                  Unit: mm

PN10

DN L D D1 D2 D0 N-Th d h1
50 48 165 125 99 180 4-M16 Φ18 290
65 48 185 145 118 200 4-M16 Φ18 330
80 51 200 160 132 200 8-M16 Φ18 358
100 51 220 180 156 240 8-M16 Φ18 378
125 57 250 210 184 260 8-M16 Φ18 428
150 57 285 240 211 280 8-M20 Φ23 490
200 70 340 295 266 300 8-M20 Φ23 588
250 70 395 350 319 320 12-M20 Φ23 690
300 76 445 400 370 350 12-M20 Φ23 815
350 76 505 460 429 400 16-M20 Φ23 890
400 89 565 515 480 450 16-M24 Φ27 980

Additional information

Body Material

SAF2507, SS2507
Class

150/PN16
Size

14", 2", 20", 3", 4", 6"
