Search Results for: Gate valve
DIN Soft Seat Gate Valve
DIN Soft Seat gate Valve 1. Body Material: Cast Iron, Ductile Iron 2. Disc: Cast Iron, Ductile Iron 3. Bonnet: Cast Iron, Ductile Iron 4. Stem: Stainless Steel 5. O-Ring: NBR 6. Gland: Ductile Iron 7. Operation: Manual Operated, Gear Operated 8. End Connections: Flanged, Buttweld, Socketweld Nominal Diameter: DN50 to DN300 Nominal Pressure: PN10,
Flanged Knife Gate Valve
Flanged Knife Gate Valve Body: Carbon Steel, Ductile Iron, SS316 Knife: SS304, SS316 Disc: SS304, SS316L Wedge: SS304, SS316, SS316L Packing: PTFE Seal Ring: Polyurethane, EPDM, NBR, VITON Yoke: SS304, SS316 Packing Gland: CF8, WCB Nominal Size: DN50 to DN450 Nominal Pressure: Class150 to Class30, PN10 End Type: Flanged Operation: Handwheel, Electric Actuated, Pneumatic Actuated
Forged Steel Gate Valve
Forged steel Gate Valve Body: A105, F22, F304L, F316L Bonnet: A105, F22, F304L, F316L Seat Ring: A276 410, A276 304, A276 304L, A276 316L Stem: F6, F304, F304L, F316L Gasket: SS304+Graphite, SS316+Graphite Gland: A276 410, A276 304, A276 316 Gland Flange: WCB, CF8 Packing: Graphite, PTFE End Connections: Buttweld, Socketweld, Flanged Nominal Diameter: DN8 to
ANSI Gate Valve
ANSI Gate Valve Body: WCB, CF8, CF8M, CF3, CF3M, WC1, WC6, WC9 Disc: WCB, CF8, CF8M, CF3, CF3M, WC1, WC6, WC9 Stem: 2Cr13, F304, F304L, F316, F316L Sealing Face: 13Cr Stellite Gasket: SS304+Graphite Packing: Graphite, PTFE Nominal Diameter: DN15 to DN600 Nominal Pressure: Class150 to Class2500 End Connections: Flanged, Buttweld Operation: Handwheel Operated, Gear Operated,
Through Conduit Knife Gate Valve
Through Conduit Knife Gate Valve Body: Ductile Iron, WCB, CF8, CF8M Gate: SS304, SS316, SS2205, Stem: SS420, F304, F316 Seat: EPDM, Metal, Viton, PTFE, NBR Nominal Diameter: DN50 to DN500 Nominal Pressure: Class150, PN10, PN16 Operation: Manual, Electric Actuated, Pneumatic Actuated Dimensions DN NPS F-F 50 2” 48 65 2 1/2″ 48 80 3″ 51

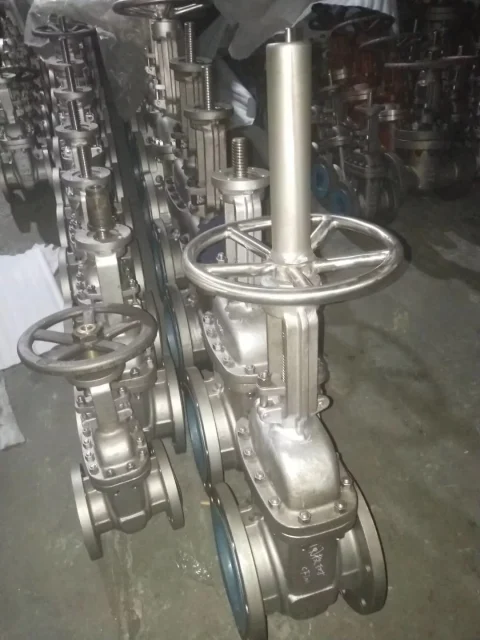

API Gate Valve
API Gate Valve Design Standard: API 600, API 6D Face to Face: ANSI B16.0, API 6D Flange Dimension: ANSI B16.5 Butt Welding Dimension: ANSI B16.25 Pressure Temperature Standard: ANSI B16.34 Inspection and Test Standard: API 598, API 6D Test Pressure Nominal Pressure (Lb) Shell Strength Test Water Seal Test Air Seal Test MPa Lbf/in2 MPa
BS Ductile Iron Gate valve
BS Ductile Iron Gate valve 1. Body: Ductile Iron 2. Disc: Ductile Iron+EPDM 3. Stem: Stainless Steel, Inox 4. Bonnet Gasket: EPDM 5. Bonnet: Ductile Iron 6. Sealing Ring: EPDM 7. O Ring: EPDM 8. Stem Nut: Brass, Bronze 9. Holding Ring: Brass 10. Handwheel: Ductile Iron Nominal Diameter: DN50 to DN600 Nominal Pressure: PN16
Double Disc Gate Valve
Double Disc Gate Valve 1. Body: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel 2. Drain Box: Cast iron, Ductile Iron 3. Disc: Carbon Steel, Stainless Steel, Brass 4. Top Wedge: Carbon Steel, Stainless Steel, Brass 5. Stem Nut: Ductile iron, Brass 6. Stem: Cast iron, Ductile iron 7. Bonnet: Cast Iron, Ductile iron 8.
BS Stainless Steel Gate Valve
BS Stainless Steel Gate Valve 1. Body: Stainless Steel 2. Disc: Stainless Steel+EPDM 3. Stem: Stainless Steel, Inox 4. Bonnet Gasket: EPDM, Graphite 5. Bonnet: Stainless Steel 6. Sealing Ring: EPDM 7. O Ring: EPDM 8. Stem Nut: Brass, Bronze 9. Holding Ring: Brass 10. Handwheel: Ductile Iron Nominal Diameter: DN50 to DN600 Nominal Pressure:
