Titanium Wafer Butterfly Valve

Main Material : Duplex, Super Duplex, Hastelloy C276/B3, Inconel, F347, F44, F317L, F321, Titanium, Monel, Alloy 20, CF8, CF8M, CF3, CF3M, CN7M, LC1, LC2, LC3, LCB, LCC, etc.,

Valve type Wafer type
Actuator Handle,Gear Operated,Electric ,Pneumatic
Body material Titanium,Duplex,Monel,Super Duplex,Alloy 20,F347,Inconel,Hastelloy C276/B3
Disc Material Stainless steel
Stem Material 45#
Sealing material EPDM
Pin With/no pin
Bolt Stainless steel
Connection Type Wafer End
PN PN10,PN16,PN25,PN40
DN 100mm, Customized
Color Customized
Suitable temperature 10 to 150oC
Suitable Medium Water, Oil, Gas

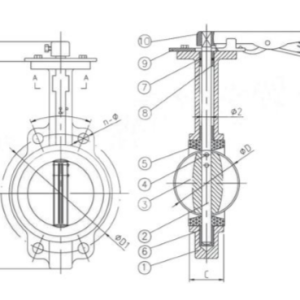

Dimension:

DN A B C E L H a D1 D2 D3 D4 N-D5 D6 D7 D8 D9 D10
mm inch
50 2″ 280 161 42.04 52.9 32 9.52 45° 83 11  52.6 120 4-23 70 10 102 100 12.6
65 21/2″ 303 175 44.68 64.5 32 9.52 45° 83 11  64.3 136.13 4-26.6 70  10 102 120 12.6
80 3″ 315 181 45.21 78.8 32 9.52 45°/22.5° 83 11  78.8 152.4/160.0 4-24/4-18 70  10 102 127 12.6
100 4″ 353 200 52.07 104 32 11.11 45°/22.5°  83 11 104  177.8/185.16 4.17.5/4-25.8 70  10 102 156 15.77
125 5″ 379 213 54.36 123.3 32 12.7 22.5° 83 11  123.3 215.01 4-23 70 10 102 190 18.92
150 6″ 404 226 55.75 155.6 32 12.7 22.5° 83 11  155.7  238.12 4-25 70  10 102 212 18.92
200 8″ 487 260 60.58 202.5 45  15.87 15°/22.5°  127 14 202.4 296.07 4-23/4-26 102  12 152 268 22.1
250 10″ 547 292 65.63 250.5 51 22.5°/15° 127 14 250.4 357 4-22/4-29 102  12 152 325 28.45
300 12″ 631 337 76.9 301.6 51 15°  127 14 301.5 406.4/431.8  4-30.2/4-25.4 102  12 152 403 28.45
