Description

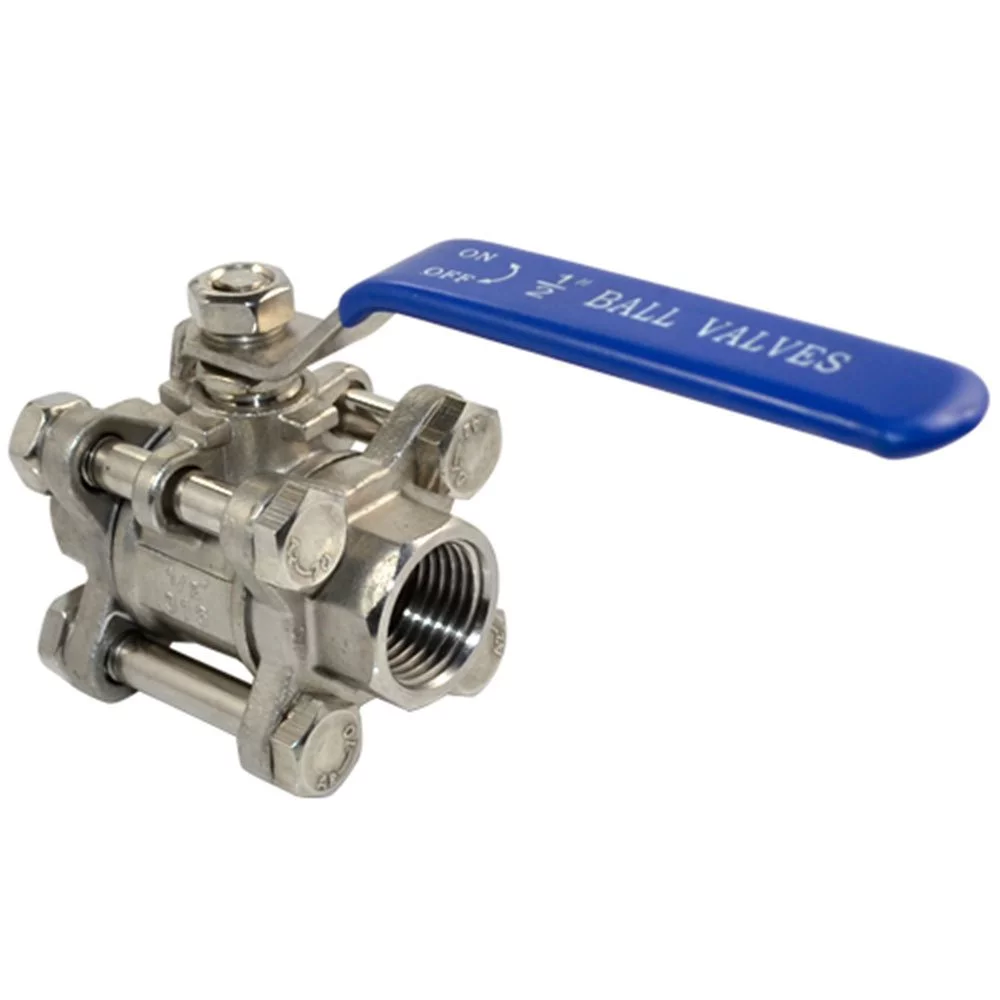

3 Piece Reduced Port Ball Valve
| Material | SS304, SS316,WCB |
| Size | 1/4” to 4” |
| Pressure | 1000WOG PN64 |
| PC | 1 PC, 2 PCS, 3 PCS |
| Bore | Full bore and Reducer Bore |
| Thread | NPT, BSPT, BSP, DIN259/2999 |
| Connection | Threaded, Socket welded, Flanged |
| Locking device | With and Without locking device |
| Mounting pad | With and Without mounting pad |
| Medium Temperature | Normal Temperature |
| Working Temperature | -20° to 230° |
| Type | Investment casting |
| Inspection | API598, EN12266 |
Dimensions:
| Size | NPS | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
| DN | 6 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | |
| L | 65 | 65 | 75 | 85 | 95 | 115 | 125 | 150 | 175 | 210 | 260 | |
| D | 11.6 | 13 | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 80 | 100 | |
| H | 44 | 44 | 46 | 52 | 57 | 80 | 88 | 94 | 130 | 140 | 165 | |
| W | 100 | 100 | 100 | 124 | 124 | 154 | 154 | 154 | 260 | 260 | 284 | |
