Description

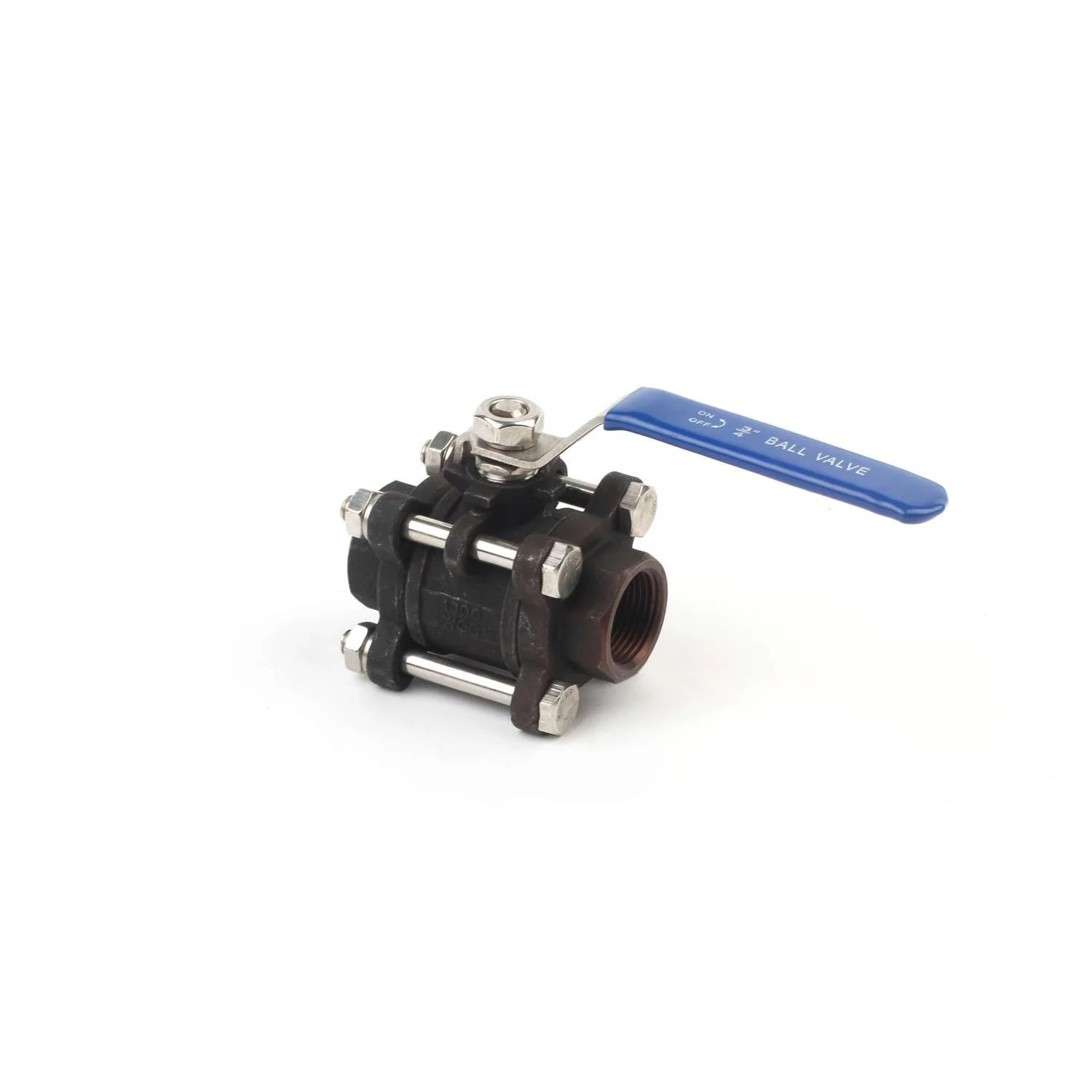

3 Piece Forged Steel Ball Valve
Full Port or Reduced Port
Working Pressure: 3000 WOG (PN200)
Working Temperature: -20ºC to 260ºC (-4ºF to 500ºF)
Investment casting
Blow-out proof stem
Anti-Static Device
Locking device
ISO 5211 Mounting pad
Wall thickness to ASME B16.34
NACE MR0175 (option)
Butt weld ends conform to ANSI B16.25 and DIN 3239
Main Parts and Materials
| 1 | CAP | SS304/SS316/A105 | 9 | THRUST WASHER | PTFE |
| 2 | BOLT WASHER | SS304/SS | 10 | PACKING | PTFE |
| 3 | HEX NUT | SS304/SS | 11 | GLAND | SS304/SS |
| 4 | BOLT | SS304/SS | 12 | LOCATING PIECE | SS304/SS |
| 5 | BODY | SS304/SS316/A105 | 13 | HANDLE | SS304/SS |
| 6 | SEAT | PTFE | 14 | STEM NUT | SS304/SS |
| 7 | BALL | SS316/SS304/SS | 15 | PLASTIC COVER | PLASTIC |
| 8 | STEM | SS316/SS304/SS | 16 | DOWEL | SS304/SS |
Dimension:
| mm | 1/4″ | 3/8″ | 1/2″ | 3/4″ | 1″ | 1 1/4″ | 1 1/2″ | 2″ | 2 1/2″ | 3″ | 4″ |
| D | 11.6 | 12.7 | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 80 | 100 |
| L | 60 | 60 | 70 | 85 | 95 | 110 | 130 | 150 | 190 | 210 | 268 |
| H | 50 | 50 | 60 | 64 | 71 | 78 | 86 | 95 | 130 | 148 | 173 |
| W | 100 | 100 | 130 | 130 | 165 | 165 | 190 | 190 | 250 | 250 | 280 |
| C | 14 | 17.5 | 22.7 | 27.5 | 33.5 | 42 | 48.6 | 60.5 | 76.5 | 60 | 106.5 |
