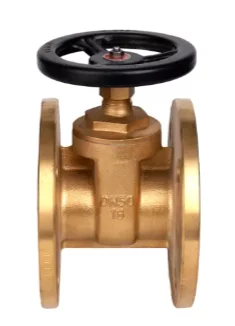

Bronze Flanged Gate Valve
Body: Bronze, Aluminium Bronze(C95800, C95500, C95200)
Disc: Bronze, Aluminium Bronze(C95800, C95500, C95200)
Bonnet: Bronze, Aluminium Bronze(C95800, C95500, C95200)
Stem: Bronze, Aluminium Bronze(C95800, C95500, C95200)
Wedge: Bronze, Aluminium Bronze(C95800, C95500, C95200)
Bonnet Gasket: SS304+ Graphite
Packing: Graphite
End Connection: Flanged, Buttweld, Socketweld
Operation: Handwheel, Electric Actuated, Pneumatic Actuated
Nominal Size: DN50 to DN500
Nominal Pressure: Class150 to Class2500
Design and Manufacture Standard: API 6D, API 608, BS5351
Face to Face Dimension: ANSI B16.10, API 6D
Flanged End Connection: ANSI B16.5
Buttweld End: ANSI B16.25
Inspection and Test: API 598, API 6D
Dimensions Unit: mm

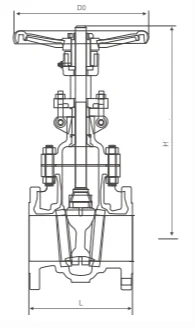

| DN | L | H | D0 |
| 50 | 178 | 386 | 200 |
| 65 | 191 | 434 | 200 |
| 80 | 203 | 480 | 250 |
| 100 | 229 | 584 | 300 |
| 150 | 267 | 765 | 300 |
| 200 | 292 | 956 | 350 |
| 250 | 330 | 1149 | 400 |
| 300 | 356 | 1350 | 450 |
| 350 | 381 | 1508 | 500 |
| 400 | 406 | 1703 | 550 |
| 450 | 432 | 1892 | 600 |
| 500 | 457 | 2119 | 640 |
